1600X Biological Monocular Microscope with 4.3 Inch Electronic Eyepiece Display Screen and 5 Prefabricated Slide

1600X Biological Monocular Microscope with 4.3 Inch Electronic Eyepiece Display Screen and 5 Prefabricated Slide
  • Продавецwww.rapturewatch.us
  • Список ценUS $99.04piece
  • Продажная ценаUS $99.04piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (800)

Oписание продукта

wy-plugin-start

Hot Commodity

Diameter DIA 76mm Gear Zoom Stereo Microscope Stand Part Holder Support Ring for Tinocular/Bincoluar Stereo Microscope

$74.99

Removable X Y Axis Stage 360 Degree Rotating Moving Platform Microscope Working Table Work Stand For Video Stereo Microscope

$113.99

Removable Microscope XY Measuring stage X Y Moving stage XY Working Table Work Stand For Video Stereo Microscope

$63.99

Big Size Heavy Duty Adjustable Boom Large Stereo Arm Table Stand 50mm Ring Holder For Lab Industry Microscope Camera

$56.99

Big Size Heavy Duty Adjustable Boom Large Stereo Arm Table Stand 50mm Ring Holder For Lab Industry Microscope Camera

$129.99

Horizontal Type Electronic Video Microscope Table Horizontal Microscope Working Stand X-Y Stage Load Table 50mm Gear Ring Holder

$126.99

25mm Metal Arm Support Holder for Microscope Camera Monitor System Table Stand

$16.99

Trinocular Stereo Microscope Head Magnification Continuous Zoom 7X-45X WF10X/20

$176.99

wy-plugin-end

Feature:

An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light

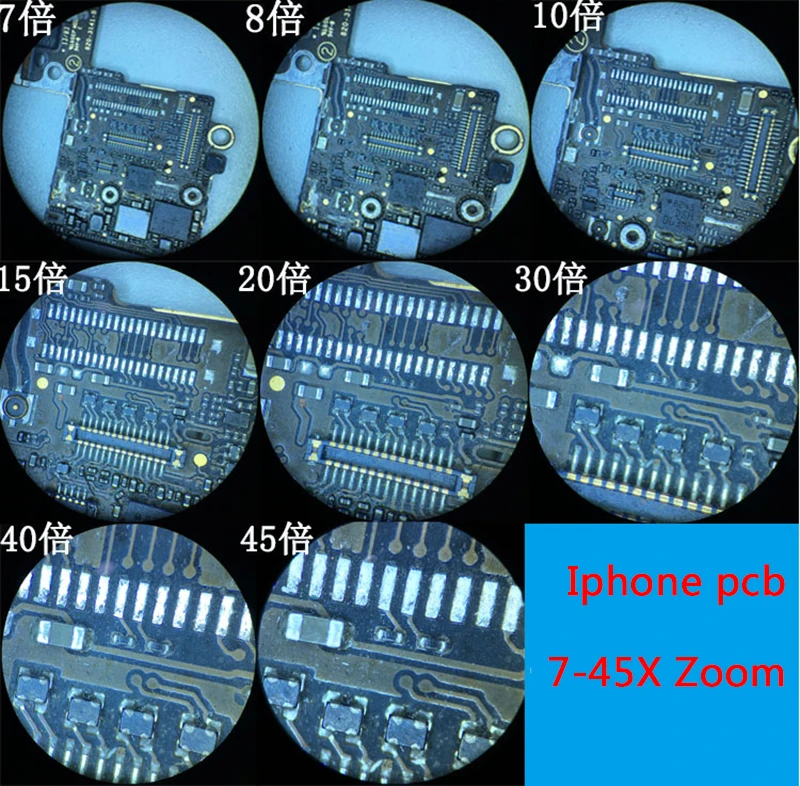

7x-45x super wide zoom magnification power
Bright cool light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included


Expand the scope of operations,any orientation and angle observed the objectives.
Vertical Pillar: high 380mm,Diameter Ø32mm
Horizontal moving:235mm
Base size: 210x260x40mm
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm


144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

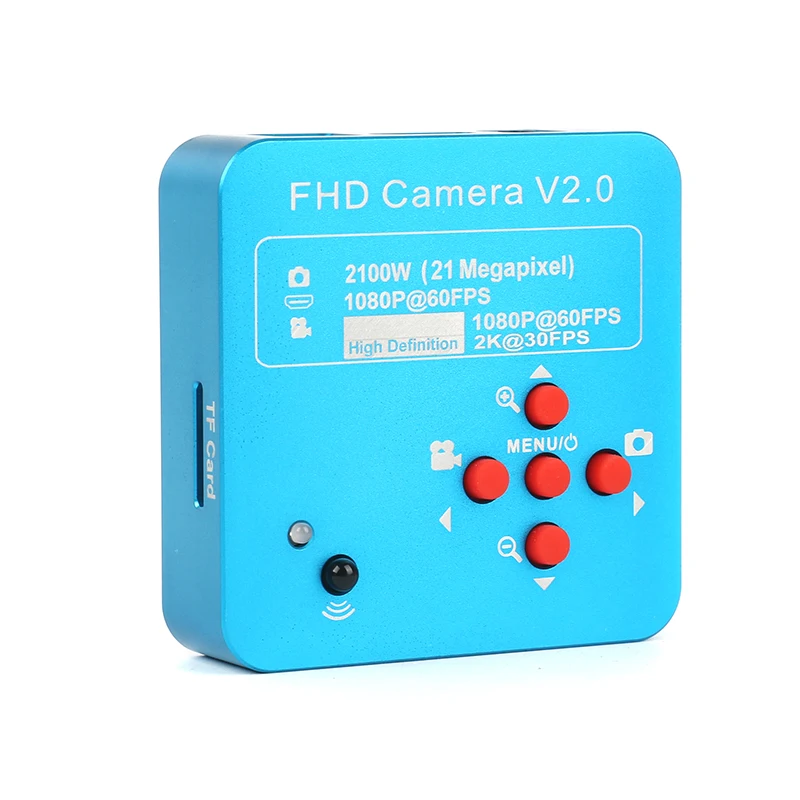

Module:FHD216
Sensor Panasonic:21 MegaPixel, 21 million pixels CMOS
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:21MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W  12V,0.12A
Lens interface:C/CS口
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser


Package Including:

1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x 144-LED Ring Light
1 x Double Boom Microscope Bracket
1 x Focusing Rack
1 x C-mount Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x Usb Lines
1 x HDMI Lines
1 x Paper Manual
1 x 8G TF Card
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
1 x SZMCTV 1/2 Lens
1 x High Temperature Resistant Working Pad
1

2728


1234567



118117115

1813

11123HTB1qevEBOCYBuNkSnaVq6AMsVXaM141516

29303132333435





About the Shipping:

If for parcel under 2KG, we will arrange shipment by Aliexprese Standard Shipping,or China Post Registered Air Mail,or ePacket, which is the recommended logistics of Aliexpress. The tracking information will be shown on Aliexpress and you can see the update tracking status very clearly. For any shipping queries, you can contact us or Aliexpress for assist.
If you choose other shipping service, please kindly take reference the transit time we commit.You can use https://www.17track.net/zh-cn to check package tracking information.


For the shipments over 2kg, we will only arrange it by express shipping. You can choose UPS/DHL/ EMS/ SPSR/ FedEx/ Aramex/AliExpress Premium Shipping, etc.. The transit time please you take reference of our arrival commitment.  It is except the delay of customs clearance problems at destination countries.


About the Taxes:

We won\'t take any responsibilities for any taxes occur at destination countries.
We need you to provide the declare value we should show on the commercial invoice for any express shipments. .

About the remote area of the International shipping

What is the remote area?It is the destination which is out of the service of the international logistics company.Each of the express company disptaches the parcel of the area,they will collect the extra remote area fees,about the fees,the buyers should bear it,the remote area fees is about $36-$40.

The link of the DHL  remote area service inquired is as below:


Enter it and you can see the below interface,then click the \'Remote\'
Areas:select the country as the picture shows and the entry zip code,then click the right

The link of the Fedex  remote area service .




Return & Refund:
Before purchasing, we welcome you to contact us for any questions you have of the products you are interested. If you don\'t satisfy with the product you bought, please contact us first. You can return the product for exchange or refund. In this case, buyers should pay for the both shipping fee for sending & returning. For defective items or repair items, buyers should pay the return shipping fee and we will ship the replacement free.(Only applicable for items after receiving in 60 days.)
For DOA product, we have the right to ask buyers to provide images/ videos to prove the DOA products. After we confiirm the situation, we will arrange full refund.
All the products are well tested before shipping. If any DOA shipments you got, please contact us first instead of open disputes. We will get back to you in 24 hours & assist you for any questionis.
Thank you for choosing our products and thank you for your cooperataion!
