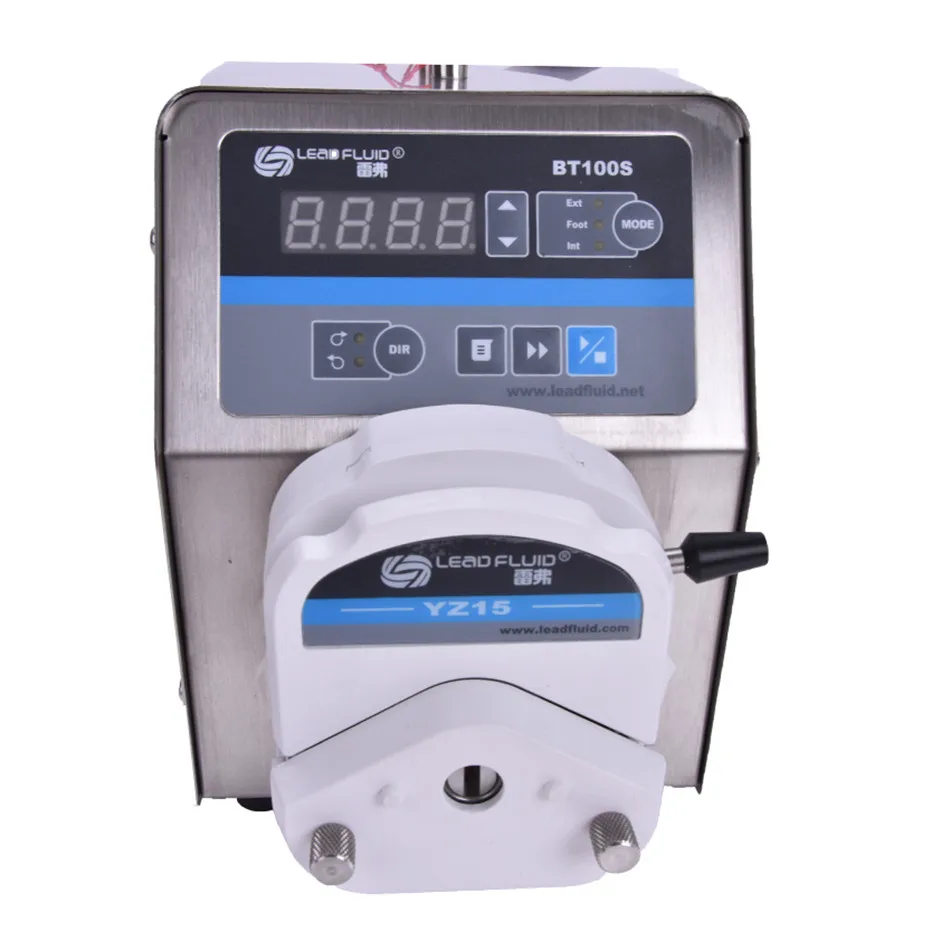

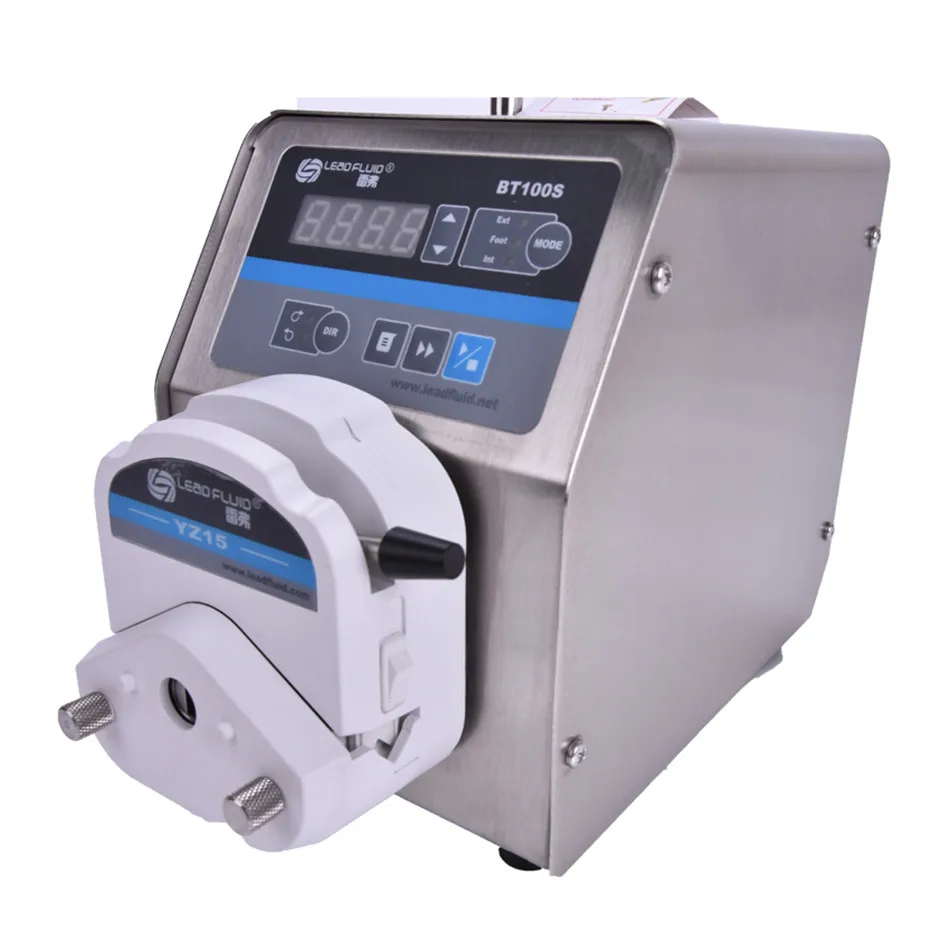

Led Digital Display Low Flow Precise Variable Speed Peristaltic Pump For Water Pumps Fluid BT100S / YZ15



aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()

Technical parameters

   • Flow range: 0.00016-570 ml / min;
   • Flow accuracy error: <0.5%;
   • Speed range: 0.1 to 150 (r / min);
   • Speed resolution: 0.1 (rev / min);
   • Power supply voltage: AC 220V ± 10%, 50Hz / 60Hz (standard); AC 110V ± 10%, 50Hz / 60Hz (optional);
   • Power: less than <40W;
   • External control interfaces: external control input level 5V, 12V (standard), 24V (optional); external control analog 0-5V (standard), 0-10V, 4-20mA (optional);
   • external control Digital Communication Interface: RS485 communication, MODBUS protocol support;
   • Ambient temperature: 0 ~ 40
   • Relative humidity: <80%;
   • Degree of protection: IP31;
   • Chassis size :( L × W × H) 223mm × 150mm × 195mm;
   • Weight: 4.7KG;

Functions and Features
· 4 LED digital display speed and operating mode;
· LED indicators show positive and negative, internal control, external control, foot switch and other working conditions;
· Mask button operation;
* Has a start and stop, reverse, full, speed, state memory (power failure memory) and other functions;
· Easy dispensing control, repeated quantitative liquid transfer functions;
· Resolution 0.1-100 speed rev / min 0.1; 100-150 rev / min is 1;
Stainless steel shell anti-acid, corrosion resistance;
Big torque output, you can install a different head, to achieve different combinations to drive the pump head;
· Internal structure with double isolation design, circuit board with three paint spray technology, to achieve the effect of dust and moisture;
* Super anti-jamming features, wide voltage design, suitable for complex supply environment;
Outside the control of high-low control start and stop, reverse, simple packaging, opto-isolated; external control analog speed regulation;
· RS485 communication, MODBUS protocol support for easy connection to a variety of control equipment;
· Enables external foot switch or control start and stop time divider control starts and stops, filling function to achieve a simple assignment;
