FEATURES:
- High output corona discharge ozone tube with low power consumption (25W)
- High flow ball bearing cooling fan (25 CFM)
- Precise ozone output calibration
- Durable, compact and rugged construction
- Long life performance and trouble-free life
- It can be fed with different air sources
- Installation free, buy and use instantly
- Leaves no taste, odour or harmful substance in drinking water
- Aggressive in killing germs, virus and bacteria
- Disinfect anything that needs to be 100% bacteria-free
- With CE marking, approved by European Directives for essential health and safety standards
- Tested, evaluated and meets UL & TUL\'s international standard requirements
Complete set includes:

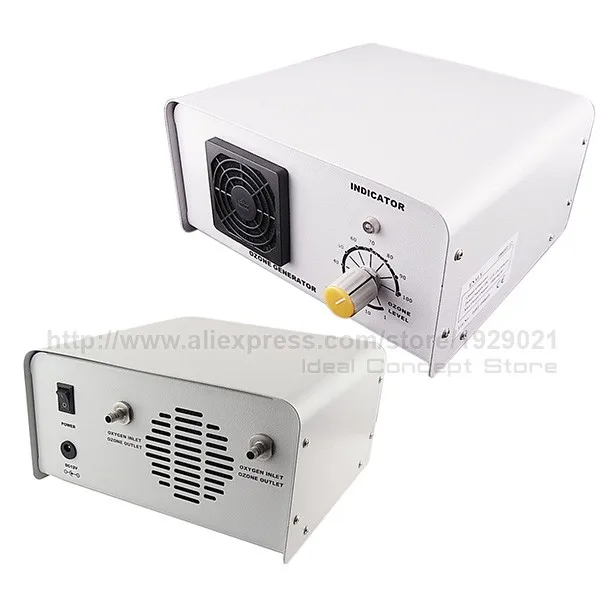

- 1 x Ozone Generator

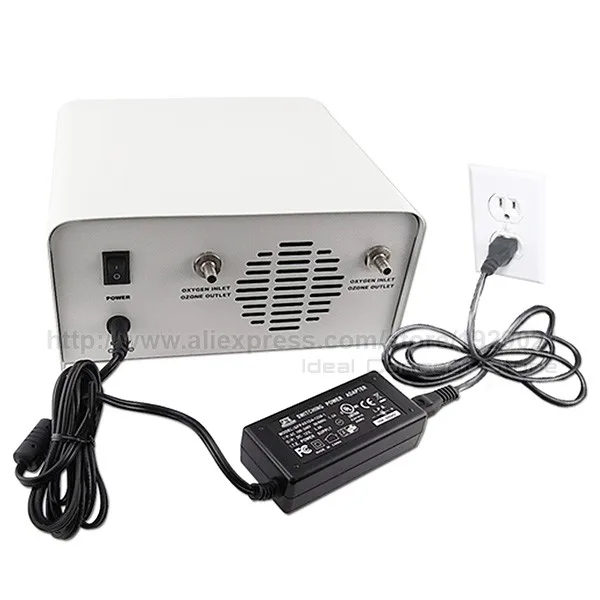

- 1 x Power Adaptor
- 1 x Power Plug (choose 1 power plug: US / UK / AU / EU power plug is available)
- English Instruction Manual
SPECIFICATIONS:
- Max Ozone Output :. 1250mg / h, adjustable
- Pump Output: Not included, external gas supply equipment is needed

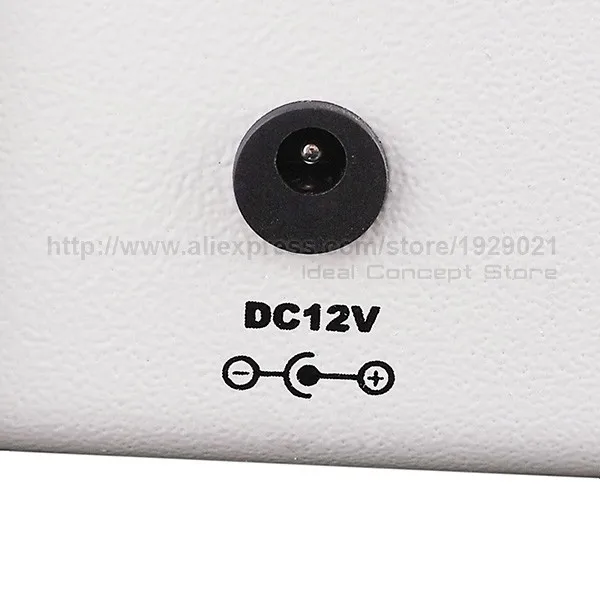

- Power Source: DC 12V, AC (100V-240V, 50-60Hz 40W) to DC adaptor is included
- Ozone Generating Method: Corona Discharge (Ozone Tube)
- Wattage: 25W
- Dimension: 200 * 210 * 110mm
- Net Weight 2.5kg
- Case: High strength painted metal
- Materials on Ozone Path: Glass, Stainless Steel, Silicone, High-density polyethylene, PTFE
- If there is no oxygen input or air dryer connected to the ozone generator, maximum ozone output is 1000mg / h
- When there is Oxygen input (25 ° C) connected to the ozone generator:

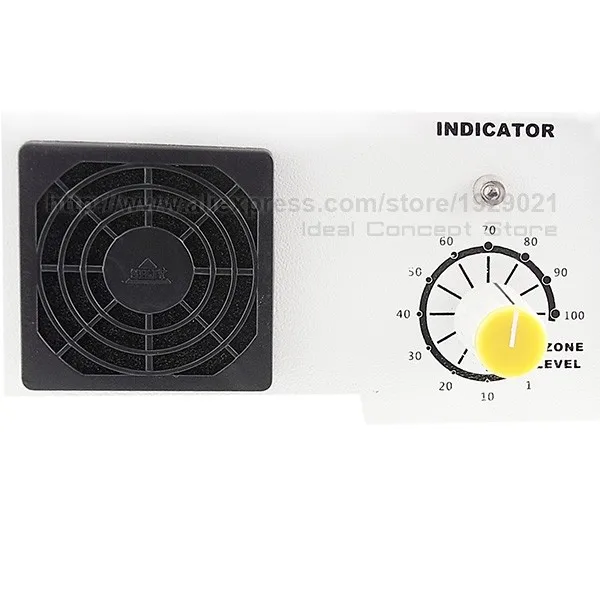

- Adjusting dial knob to 100, gives maximum ozone output of 1250mg / h
- Adjusting dial know to 50, gives maximum ozone output of 625mg / h
Oxygen flow (L / min) | Ozone output (mg / H) |
0.5 | 990 |
1 | 1100 |
Fifteen | 1250 |
3. When the air dryer is connected (25 ° C):
- max ozone output: 300mg / h
- Air flow: 1.0 L / min
