DC DC Converter 12V/24V(8V 40V) Step down to 5V 15A 75W dc to dc converter module

DC DC Converter 12V/24V(8V 40V) Step down to 5V 15A 75W dc to dc converter module
  • Продавецwww.rapturewatch.us
  • Список ценUS $23.00piece
  • Продажная ценаUS $23.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,2 (698)

Oписание продукта

Welcome, you can buy all of the MEAN WELL power supplies  in this store.

We are MEAN WELL agents, there are more than 5000 kinds of products in stock, ensure rapid delivery, price advantage, if you are business customer or purchase  more than 20 pcs, please contact us for a more favorable price!

Note: too cheap products may be imitation or defective products, usually a few months later may be broken, the original product can be used for 5 years or more, the power will not burn the equipment, this is the real bargain!

Half-brick

Wattage:

75W~150W

Features:

Half-brick size (2.28 "X" "" X "") ""

Package DIP

2:1 wide input range, 1.5KVDC isolation

Built-in remote and remote ON/OFF sense

2.5V / 3.3V / 15V output available

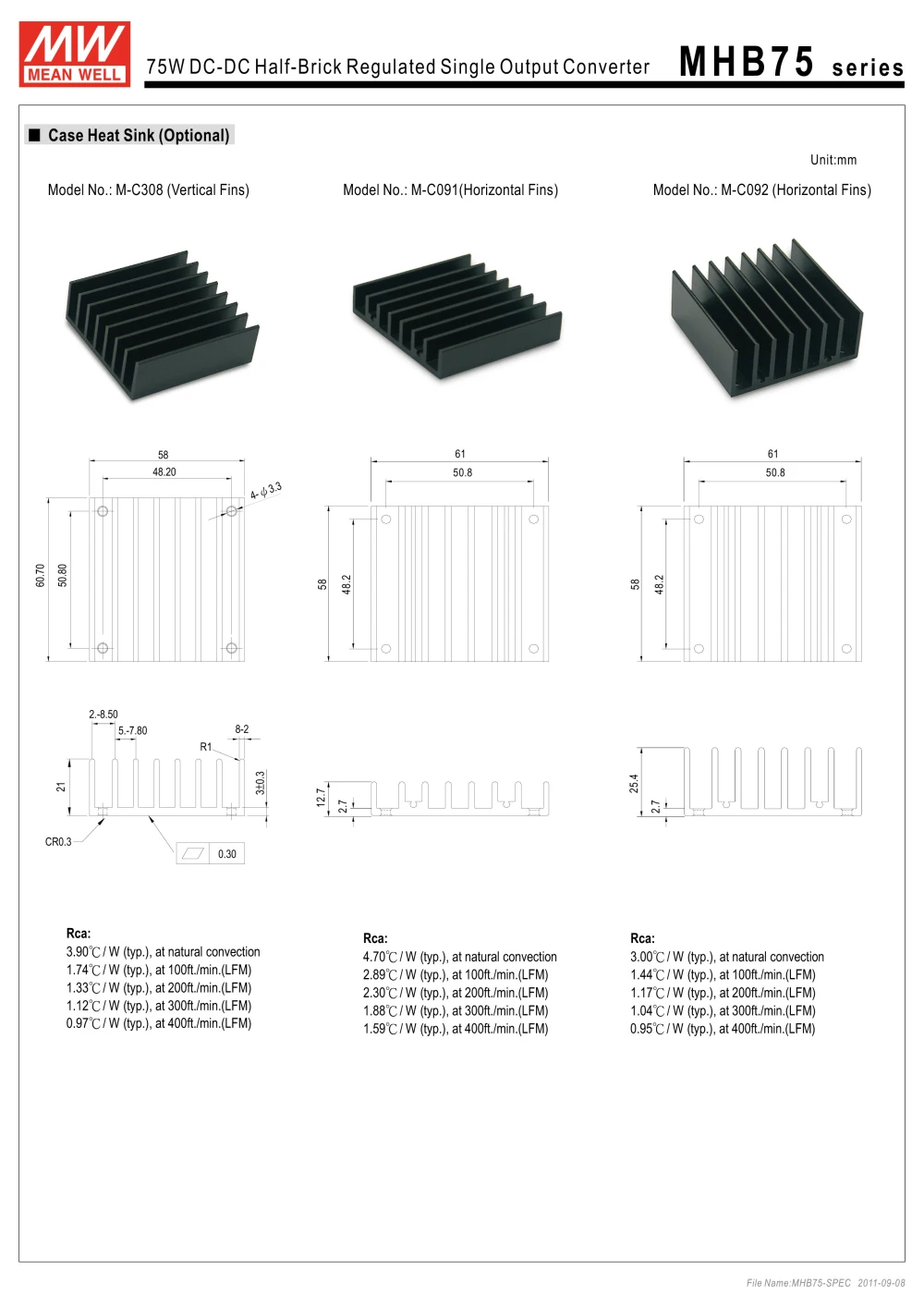

Heat sink available Optional

Model:

MHB75 / MHB100 / MHB150

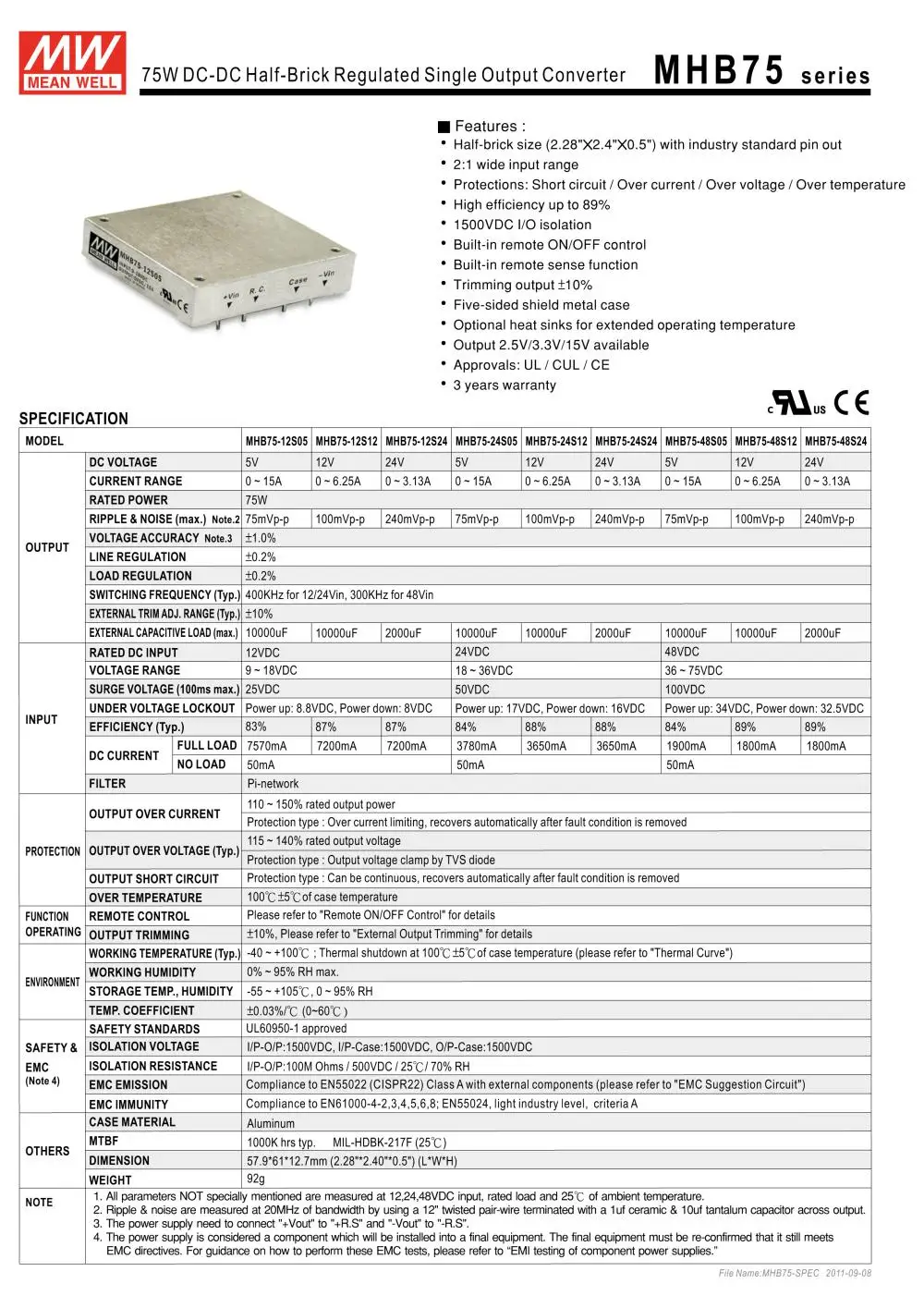

Hot! MEAN WELL original MHB75-24S12 12V 6.25A meanwell MHB75 12V 75W DC-DC Half-Brick Regulated Single Output Converter

12 6250mA 75W DC-DC Half-Brick Regulated Single Output Converter 24 VDCin

75 Watt DC-DC Half-Brick Regulated Single Output Converter

12 Volts @ 6.25 Amps, Input:24V

Features

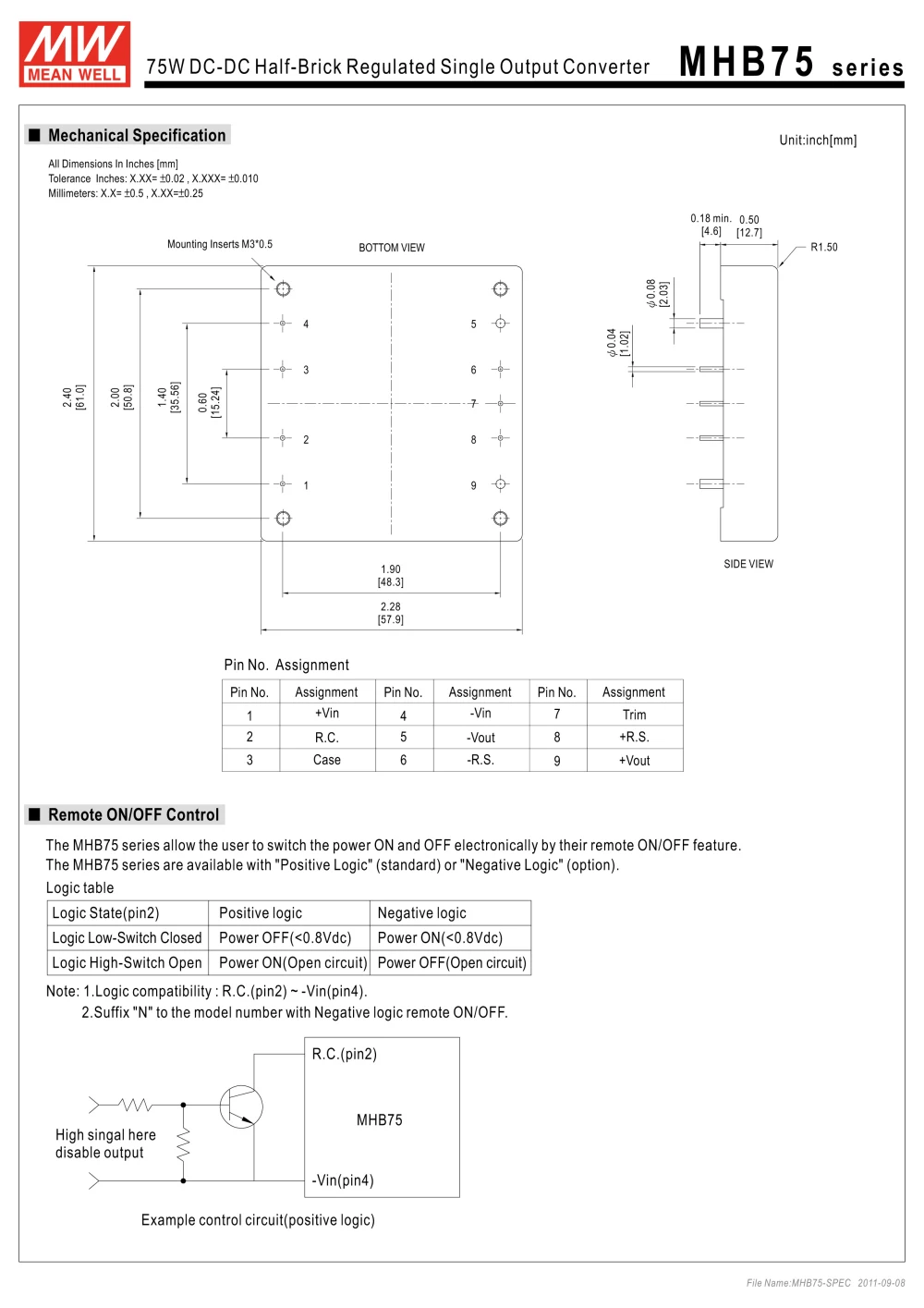

  • Half-brick size (2.28" 2.4" 0.5") with industry standard pin out
  • 2:1 wide input range
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • High efficiency up to 89%
  • 1500VDC I/O isolation
  • Built-in remote ON/OFF control function
  • Built-in remote sense

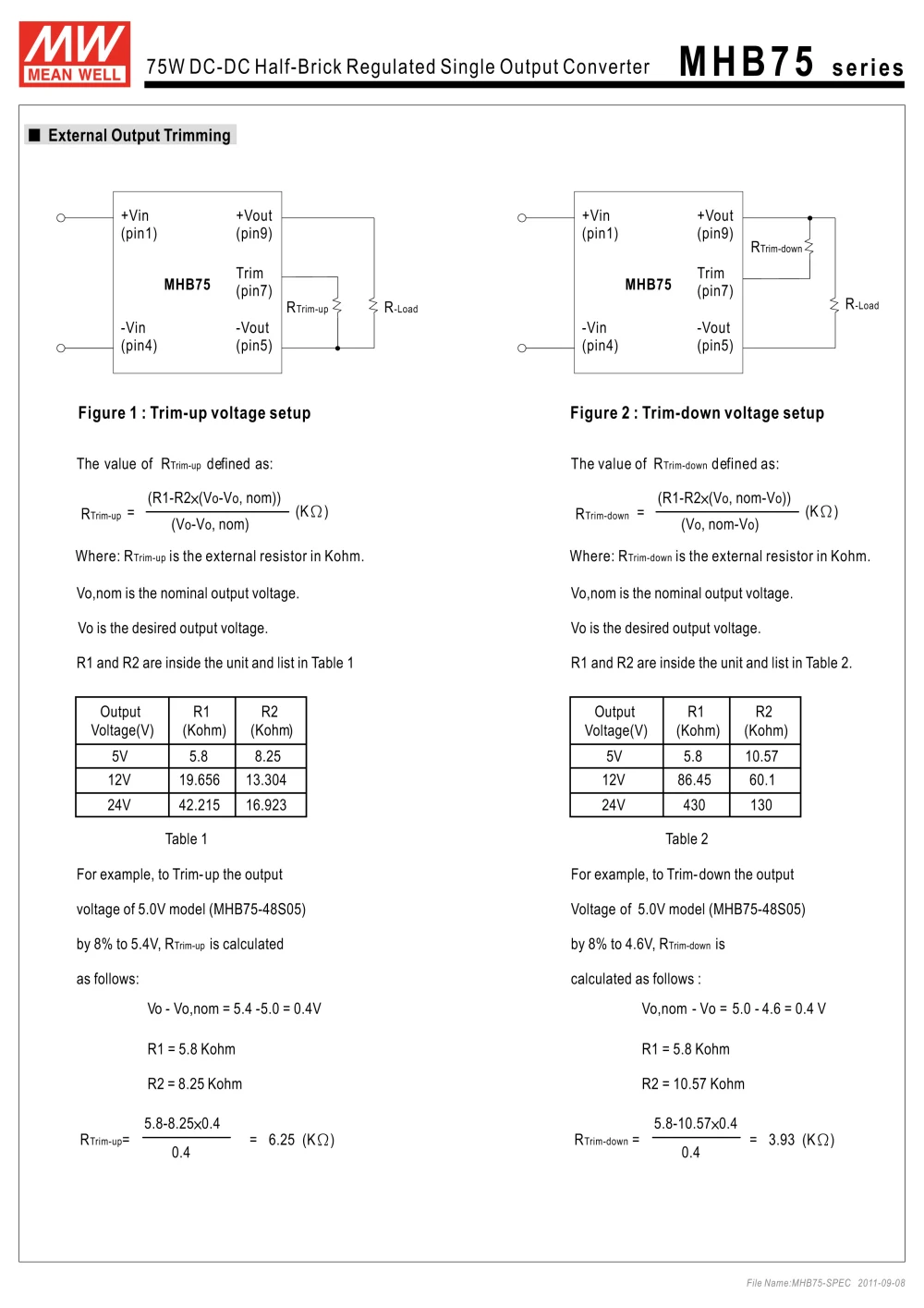

  • Trimming output 10%
  • Five-sided shield metal case

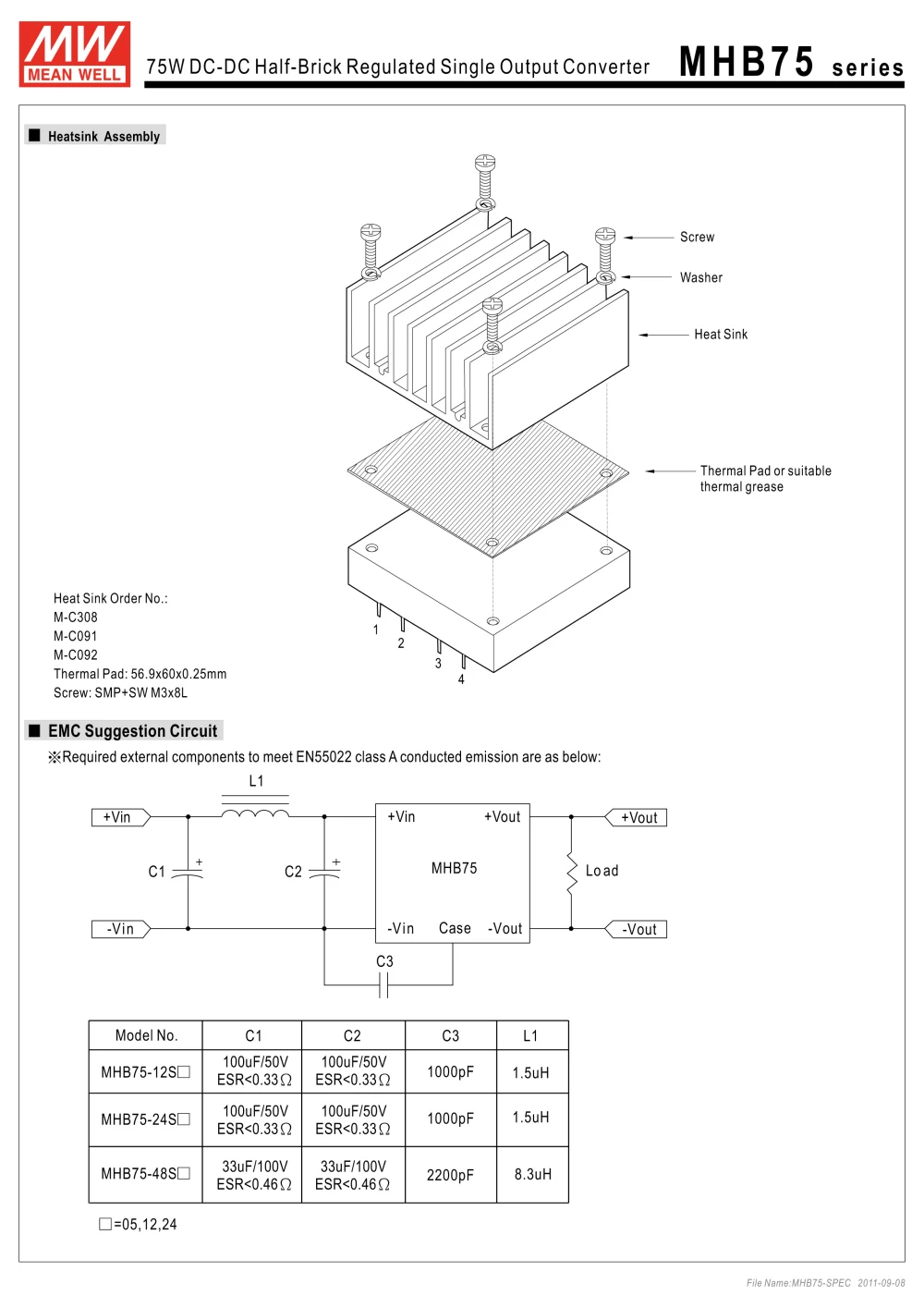

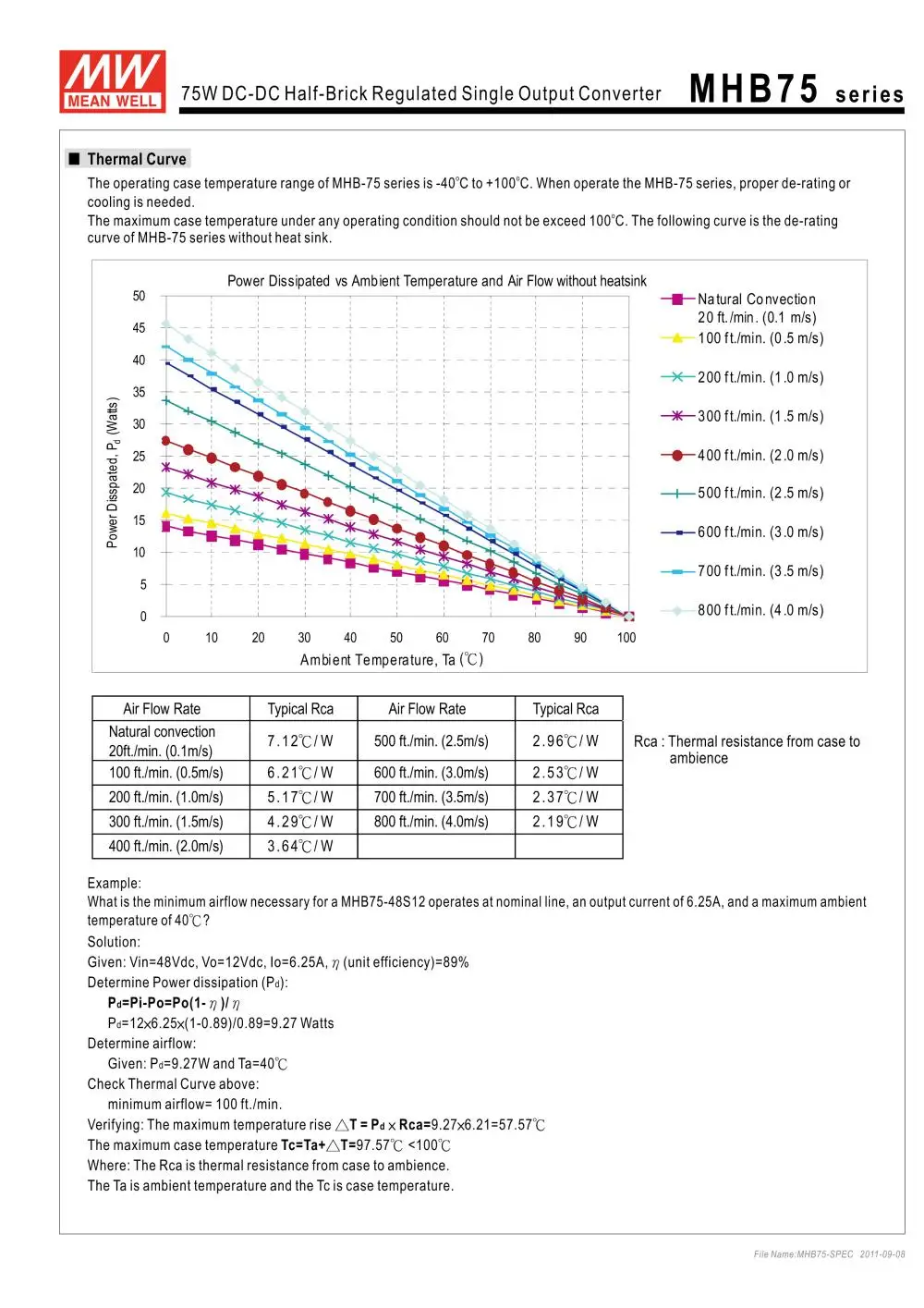

  • Optional heat sinks for extended operating temperature
  • Output 2.5V/3.3V/15V available
  • Approvals: UL / CUL / CE
  • 3 years warranty
  • SpecificationValue
    Primary Output Voltage (VDC)12
    Output Current (A)6.23
    Maximum Output Power (W)75
    FamilyMHB75
    Input Voltage Range (VDC)18 to 36
    Length (inch)2.28
    Width (inch)2.4
    Height (inch)0.5
