Vention USB 3.0 HUB To RJ45 Gigabit Network Card Lan Adapter USB Ethernet For Android TV Set top Box Laptop Windows 7 8 XP 10

Vention USB 3.0 HUB To RJ45 Gigabit Network Card Lan Adapter USB Ethernet For Android TV Set top Box Laptop Windows 7 8 XP 10
  • Продавецwww.rapturewatch.us
  • Список ценUS $22.07piece
  • Продажная ценаUS $22.07piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,6 (486)

Oписание продукта

Product Description

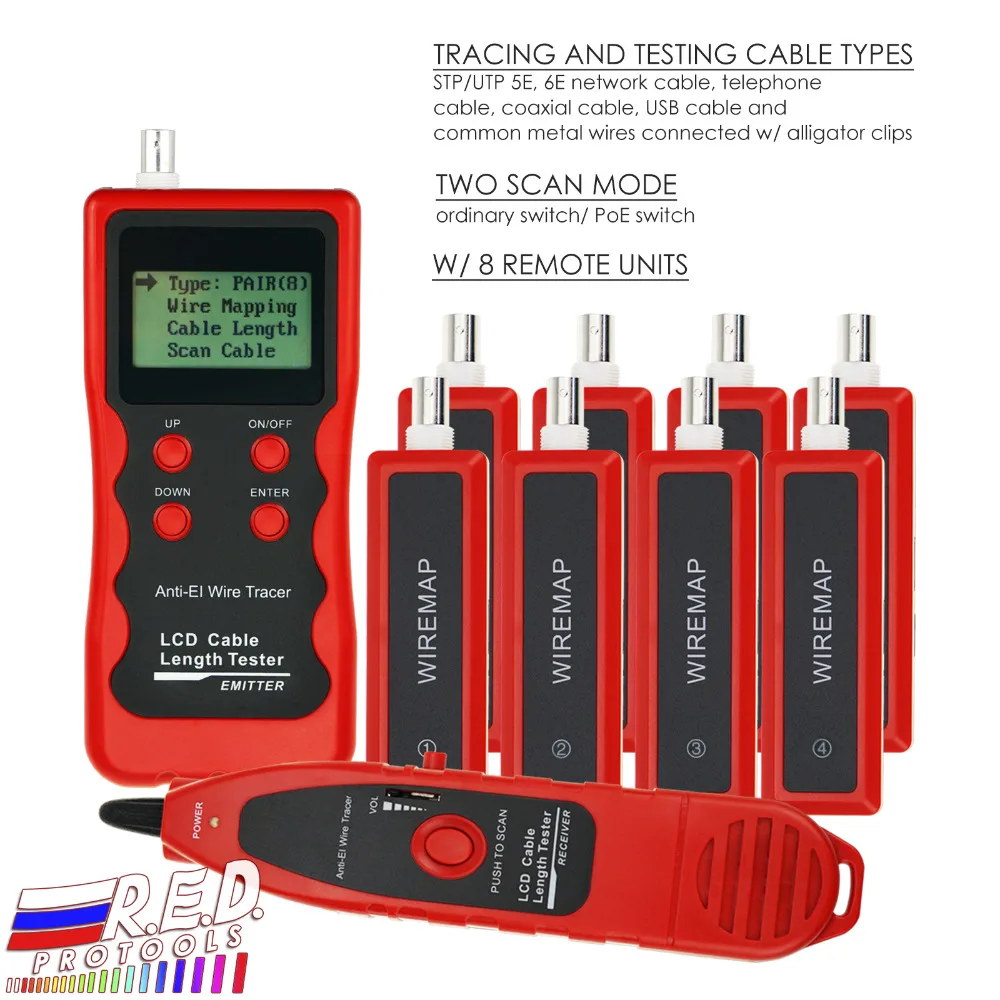

It has the state-of-the-art circuit testing functions including length test, cable line finding, line-to-line, crosstalk and breaking point, serving as a practical tool for low voltage system installation and maintenance technicians of communication circuits and comprehensive wiring circuits and capable of avoiding current interference. Excellent in verifying the LAN cable condition, Wire Hunting, and comes with LED spotlight for dark areas testing.
The 8 remote units (wiremaps) enable testing 8 cables simultaneously. It can perform crosstalk test on network cable for solving the slow speed problem and has memory function for saving calibration data.


Specifications:
  • Testing/Detecting cable types: STP/UTP 5E, 6E network cable, telephone cable, coaxial cable, USB cable and common metal wires connected with alligator clip
  • Length measurement:
    • calibration precision: 2% (+/-0.5m, or +/-1.5 feet; cable >10m)
    • measurement precision: 3% (+/-0.5m, or +/-1.5 feet; AMP, CAT5E, 6E cable material)
    • Display Unit: meter, feet, yard

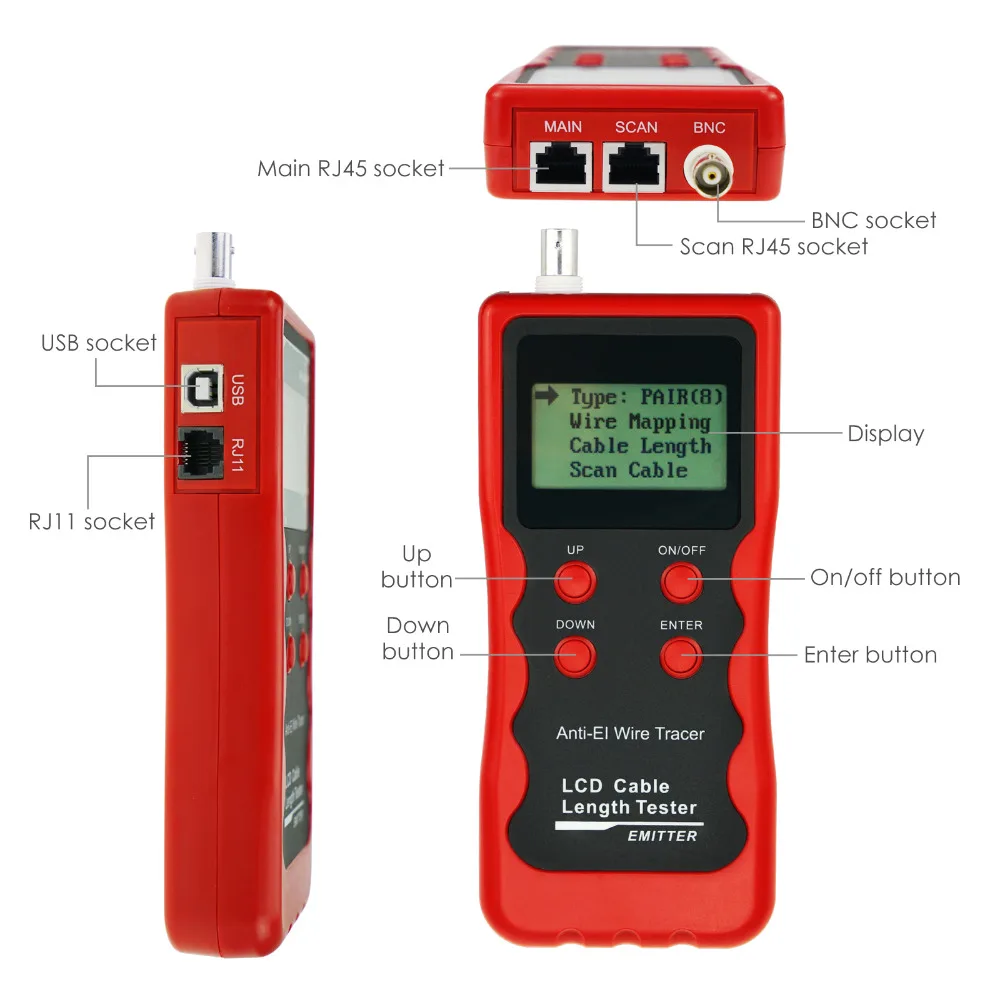

  • Transmitter:
    • LCD screen: 50 x27mm
    • Frequency: 1MHz
    • Maximum Distance:
      • Tracing cable: 3000m (for electrified wire)/ 2000m (for non-electrified wire)
      • Cable mapping: 2500m
      • Cable length testing: 1000m
    • Trace cable connected to switch: Anti-jamming
    • Tone mode: 2 Tones, adjustable
    • Compatible with connectors: RJ11, RJ45, BNC, USB
    • LED lights display: wiremap, tone, tracing
    • Cable map indication: LCD (Pin 1-Pin 8)
    • Shielded indication: LCD (Pin 9)
    • Voltage protection: AC 60V/ DC42V
    • Low battery display: LCD (6.5V)
    • Power supply: 1 x 9V battery

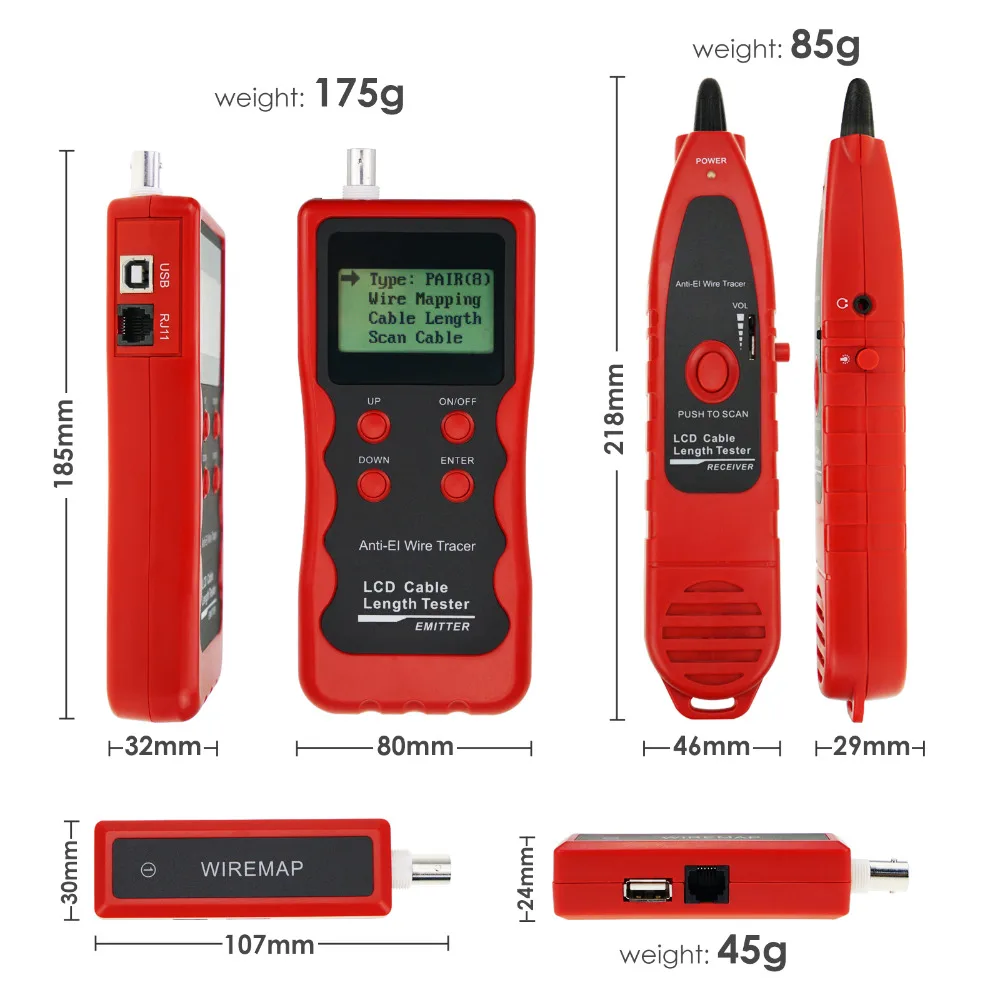

    • Dimension: 185 x 80 x 32mm
  • Receiver:
    • Tone Frequency: 600Hz/ 1.2KHz
    • The max working current: Less than 70mA
    • Earphone jack: 1
    • LED illumination: 2 LEDs
    • Power supply: 9V battery
    • Dimension: 218 x 46 x 29mm
  • Remote adaptor
    • Remote identifier: 8 pcs
    • Compatible connectors: RJ11, RJ45, BNC, USB
    • Dimension: 107 x 30 x 24mm


gainexpress-gain-express-Cable-Tester-NF-868W-set

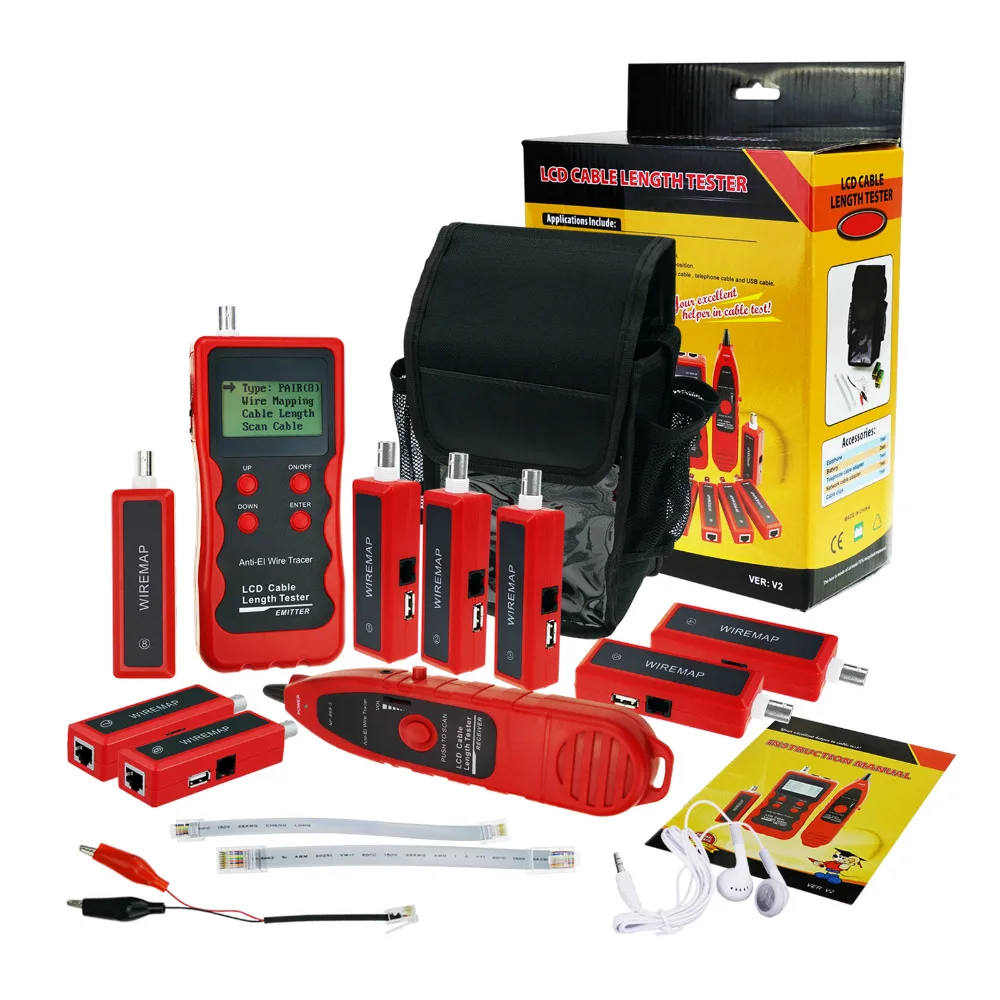

Set Includes:
  • 1x Emitter
  • 1x Receiver
  • 8x Remote adaptor
  • 1x Earphone
  • 1x RJ11 Telephone cable adaptor
  • 1x RJ45 Network cable adaptor
  • 1x RJ11-to-Alligator clip cable adaptor
  • 1x Manual
  • 2x 9V battery
  • 1x Carry pouch



PHOTO GALLERY

Cable-Tester-NF-868W-wholegainexpress-gain-express-Cable-Tester-NF-868W-partsgainexpress-gain-express-Cable-Tester-NF-868W-parts-receivergainexpress-gain-express-Cable-Tester-NF-868W-dimensiongainexpress-gain-express-Cable-Tester-NF-868W-parts-remotegainexpress-gain-express-Cable-Tester-NF-868W-applciationgainexpress-gain-express-Cable-Tester-NF-868W-baggainexpress-gain-express-Cable-Tester-NF-868W-preview

gainexpress-gain-express-Cable-Tester-NF-868W-wholegainexpress-gain-express-Cable-Tester-NF-868W-whole1gainexpress-gain-express-Cable-Tester-NF-868W-set
