Oписание продукта



Packing List



k2000-k80-em180-zl
1 PC Rfid Card access controller
1 PC 12V3A power Supply
1 PC 180kg Eletric Magnetic Lock
1 PC ZL Bracket
1 PC Plastic Exit Button
1 PC Wired Door Bell
10 PCS 125khz Rfid keytags

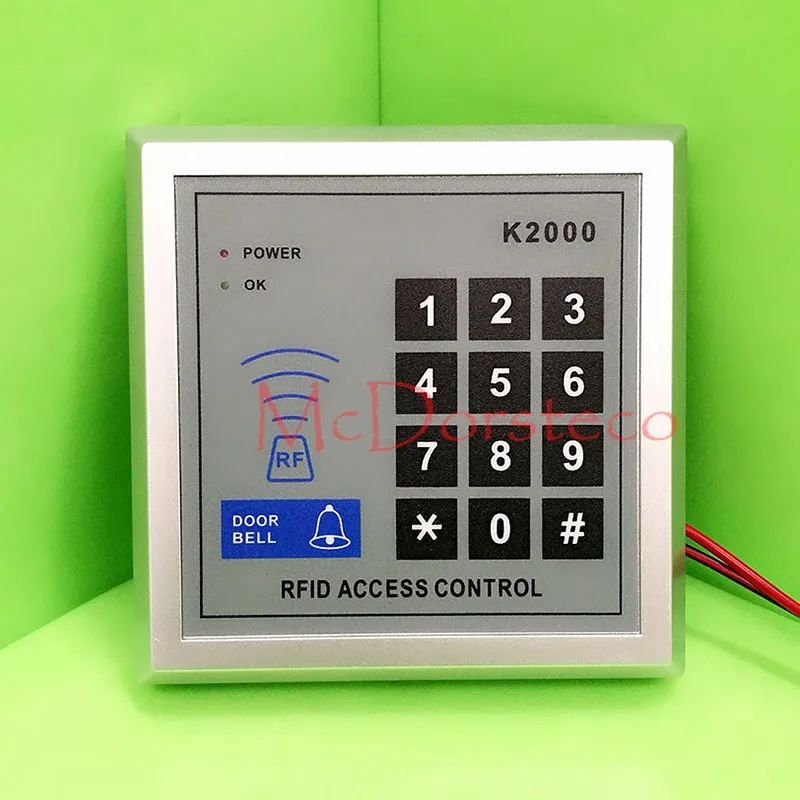

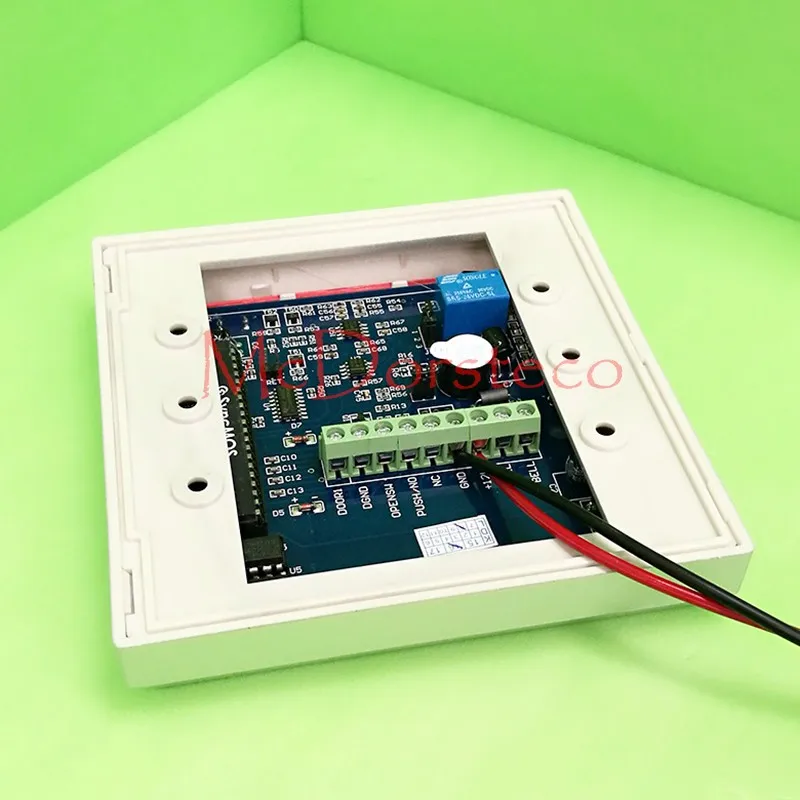

master controller

K2000-10-01K2000-11-01


Overview
Features:
High quality and high security.
Sensitively and response quickly.
Support 500 standard users.
Support card password, card plus password & password plus card.
Can add card number and delete card number as your requirement.
With 10 pcs of Key fobs.
Classical appearance with useful function.
Professional design, great for home and office , come with user manual
Ideal for homes and offices

Specifications:
Working voltage:for DC12V
Working current: ≤100mA
Memory: 500 standard users
Keypad: Press Keypad
Card read distance: 1-15 cm
RF type: 125khz EM card
Working temperature: -10 ~ 60 C
Working bumidity: 20% to 80%
3 options to open your door (admin user selectable): Card (Key Tag) & Password/ Card (Key Tag) Only/ Password Only
Item dimension: 118*118*20mm
Item weight(device): 120g

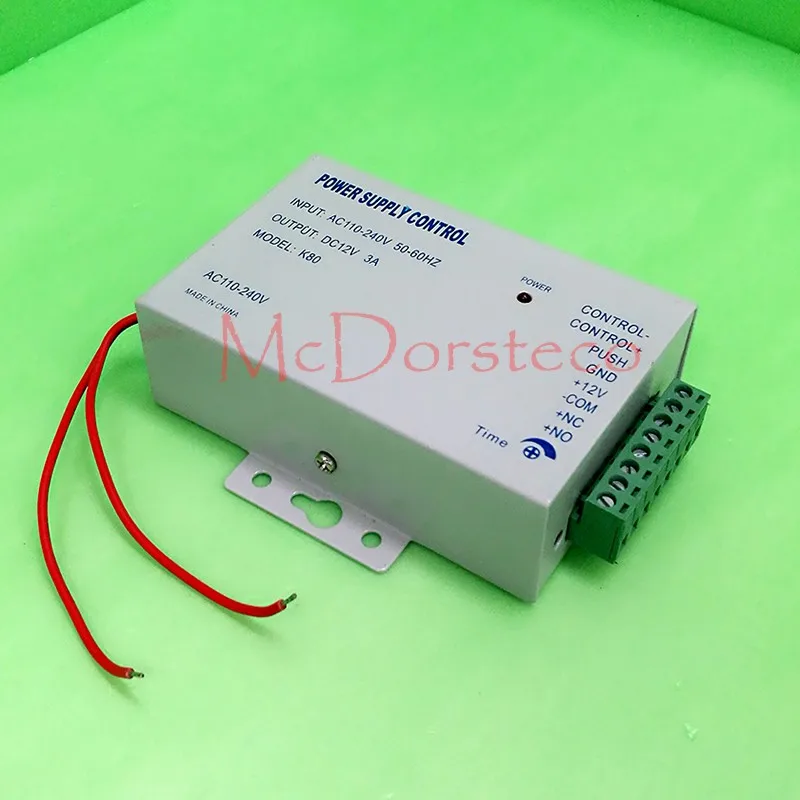

Power Supply

12V3A-01

Features:

Input: AC110-240V 50-60HZ

Output: 12V 3A

Output voltage trip range: 10%-15%

Overload protective: all outputs in a short circuit, overlaod are protected;

Power output of 0-15 seconds delay locks

Size: 105mmx91mmx34mm

Work with Eletric Lock, Access Controller, Exit Button. remote controller

electric lock



magnetic lock -ZL


Features:
Size:168Lx39Wx20.5H(mm)
Armature Plate Dimension:130Lx33Wx10H(mm)
Holding Force:180kg(350Lbs)
Input Voltage:12 DC
Current:12V/300mA
Suitable:Wooden door,Glass door,Metal door,Fireproof door
Surface Temp:≤+20 C
Operating Temp:-10~+55 C(14-131F)
Humidity:0~90%(non-condensing)
zl door

Exit button

E9

Features:

This is a plastic exit button, it is widely used in the door access control system.If you want to go out, you just need to press this Exit Button, then you can go out:
Support N0/NC/COM Contact Point Size:86*46*13mm
Support both NC Mode (Fail Safe Mode) and NO Mode (Fail Secure Mode) and COM;
Performance Testing: 1000000 times aging test;
Material: Hard Plastic.



Others



B04-01

1,12V wired door Bell,

2,  Red wire to positive (+),  Black wire to negative (-),
   3, Green, yellow, two-line short answer it, or connect with controller\'s bell+ & bell-
it can send two ding-dong ding-dong sound.



diagram

diagram
