Digital Multimeter MASTECH MS8233C non contact ACDC Voltage Current Capacitance Frequency Temperature Tester multimeter detector

Digital Multimeter MASTECH MS8233C non contact ACDC Voltage Current Capacitance Frequency Temperature Tester multimeter detector
  • Продавецwww.rapturewatch.us
  • Список ценUS $22.13piece
  • Продажная ценаUS $22.13piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (425)

Oписание продукта

mastech top

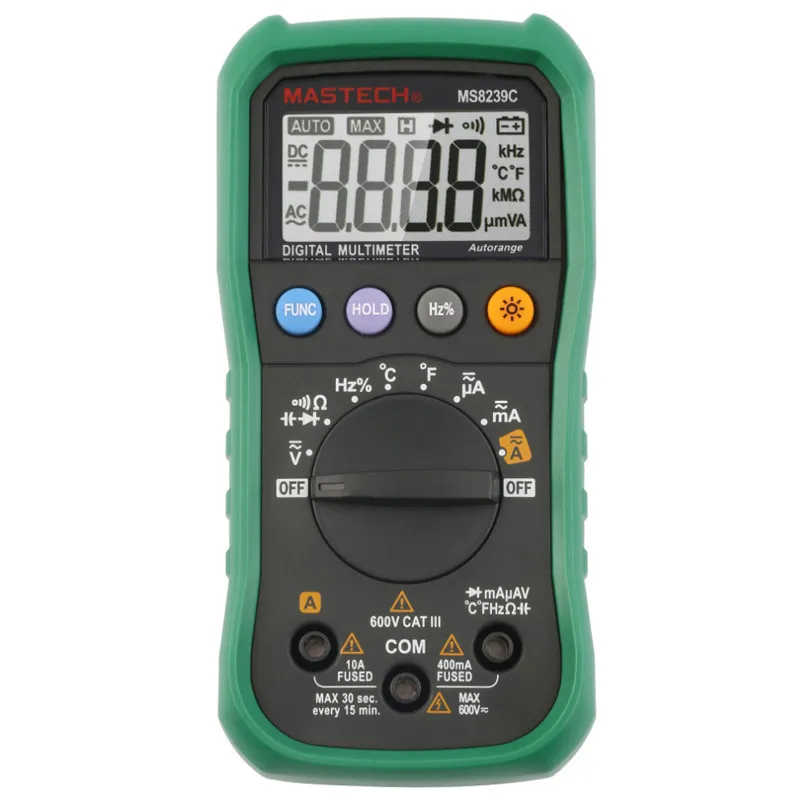

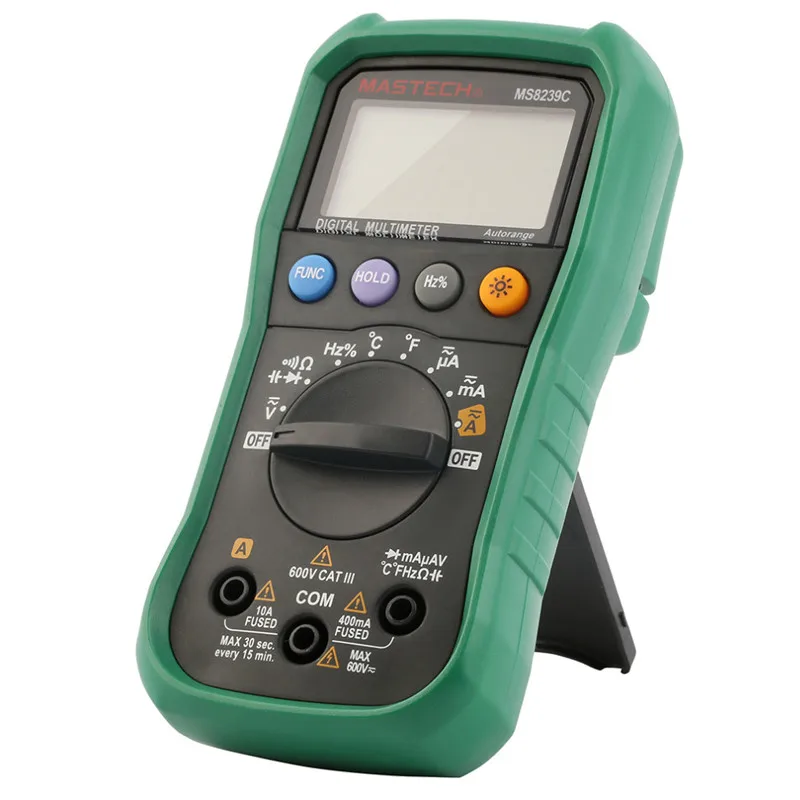

 Mastech Auto range Handheld 3 3/4 Digital Multimeter MS8239C AC DC Voltage Current Capacitance Frequency Temperature Tester



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()



Description

Specification:

The Mastech MS8239C is a budget multimeter, it can test AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, temperature, diode, continuity check etc.

Besides, the portable hand-hold appearance design , high qaulity, accuracy and simple visible operation interface will make it very popular in electrical testing field.

General Specifications :

Environmental Conditions : 600V CAT III, Pollution Degree : II.  Altitude <2000 m
Working temperature and humidity : 0 ~ 40 ° C (<80% RH, <10° C is not considered ) .
Storage temperature and humidity : -10 ~ 60 ° C (<70% RH, battery removed )
Temperature Coefficient: 0.1 \' Accuracy /° C (<18 ° C or > 28 ° C).
Allowed maximum voltage between the measuring terminal and the earth  : 600V DC or 600V AC RMS
Fuse protection : mA file: Fuse F400mA/500V
                           10A file: Fuse F10A/500V
Sampling rate: about 3 times / sec
Display: 3 3/ 4 LCD display
Over-range indication: LCD will show "OL"
Low battery indication: When the battery voltage is lower than the normal operating voltage , " " will be displayed on the LCD screen
input polarity indication : Auto shows " - " sign


Technical Specifications:

DC voltage 400mV/4V/40V/400V/600V ± (0.5% +3)
AC voltage 4V/40V/400V/600V ± (1.2% +5)
DC current 400uA/4000uA/40mA/400mA ± (1.0% +5),   10A ± (2.0% +10)
AC current 400uA/4000uA/40mA/400mA ± (1.2% +5),    10A ± (2.5% +10)
Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ± (0.8% +5)
Capacitance 5nF/50nF/500nF/5uF/50uF/100uF ± (3.0% +5)
Frequency 9.999HZ ~ 9.999MHz ± (1.5% +5)
Duty cycle 0.1% ~ 99.9% ± (3.0% +5)
Temperature (° C) -20 ° C ~ 1000 ° C ± (3.0% +3)
Temperature (° F) -4 ° F ~ 1832 ° F ± (3.0% +3)
Diode and continuity
Power supply: 2 × 1.5V AAA (not include in package)
Size: 150mm × 74mm × 41mm
Weight: 202g
Safety Level: CE CAT.III 600V RoHS

package :

  • 1 X MS8239C Meter(with test leads)
  • 100% Brand new
